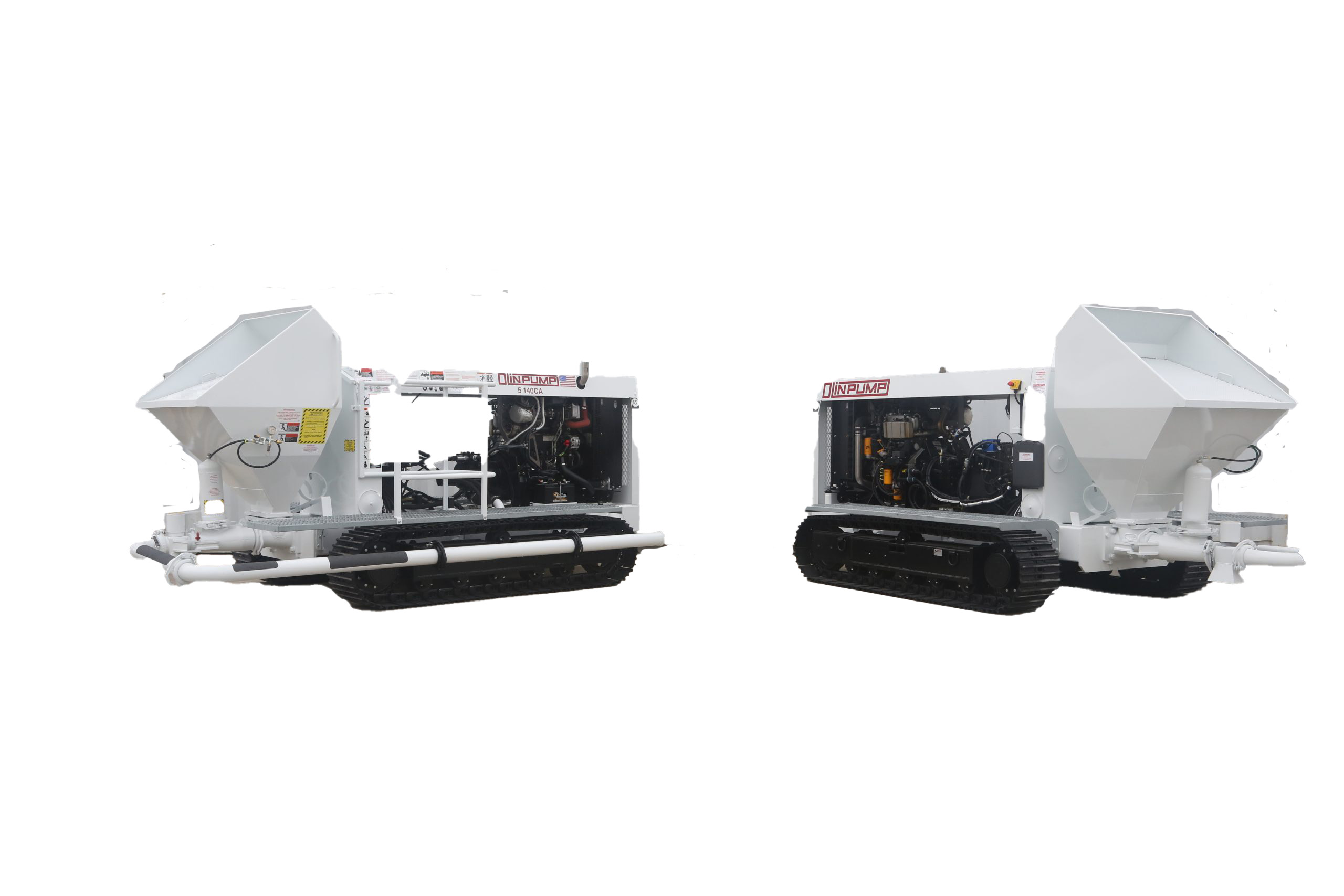

5 140CA Deep Foundation Ball Valve pump
Click to Enlarge
5 140CA
The 5 140 & 170’s 8″ delivery cylinders combined with the Millennium Series manifold, deliver the most efficiency of any auger cast pile pump on the market. No other pumps perform anywhere close to the OLINPUMP grout pumps. Efficiency, output, low maintenance and smooth delivery with no surge, make it the highest value pump available.
Specification
| Maximum Output | 140 cyh | 105 cmh |
| Delivery Pressure | 900 psi | 63 bar |
| Delivery Cylinder | 8 in | 200 mm |
| Stroke | 54 in | 1371 mm |
| Strokes/Minute | 42 | |
| Engine Power | 173 hp | 128 kw |
| Hopper Capacity | 10 cu ft | .28 cu mtr |
| Outlet | 4 in | 100 mm |
| Control System | Electric/Hydraulic | |
| Hydraulic Capacity | 95 gals | 359 l |
| Weight | 7495 lbs | 3400 kg |
| Length | 204 in | 518 cm |
| Width | 70 in | 178 cm |
| Height | 82 in | 208 cm |
